Laser PAS

Laser Photoacoustic Spectroscopy

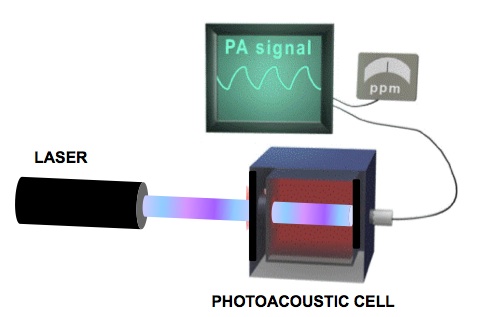

Laser-based sensing techniques are attracting great interest in various fields of applications. Among various detection schemes, photoacoustic detection offers some unique features over other laser-based techniques such as low sample volume, high sensitivity and wide linear dynamic range. Signal is generated only from the absorption thus being a so called zero-background technique. The performance of a laser photoacoustic spectroscopy system depends on the availability of appropriate laser sources, modulation schemes and the pressure sensor (i.e. microphone).

Gasera’s ultra-sensitive cantilever microphone enables high sensitivity even with low cost telecom diode lasers that operate at the weak overtones of fundamental vibration bands. On the other-hand combination with high power Mid-IR quantum cascade lasers provides detection limits that no other method can achieve.

Laser Photoacoustic Spectroscopy

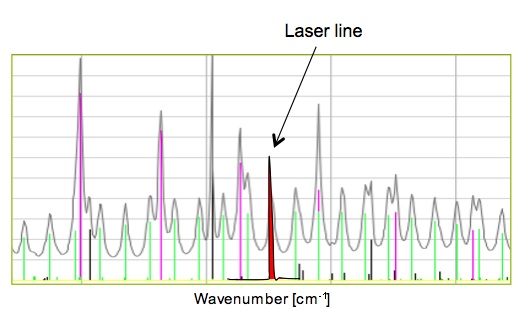

In the tunable diode laser photoacoustic spectroscopy the laser wavelength is selected so that only a single absorption line, characteristic to a target molecule, is used. This allows highly selective measurements. Power density of laser light is very high allowing high sensitivity and short response time. With tunable diode lasers a wavelength modulation across the absorption line is performed in order to minimize background signal.

Laser Photoacoustic Spectroscopy

Laser-PAS applications include

  • Environmental monitoring
  • Greenhouse gas flux measurements
  • Engine exhaust measurement
  • Breath analysis
  • Safety and security
  • Leakage monitoring
  • Air quality monitoring
  • Automotive
  • Process control
